uPMR 790


Next Generation. Now Realized.

The uPMR 790 enables simultaneous PET/MRI imaging with high temporal and spatial resolution. Next generation PET and MRI technologies redefine routine clinical imaging of real-time anatomical and functional imaging, while redefining cutting edge research imaging.


Redefining Precision PET Imaging

With a 32 cm Time-of-Flight (TOF) digital PET technology, industry leading 2.8 mm NEMA resolution and high 16 cps/kBq sensitivity, the uPMR 790 delivers exceptional PET image quality that is built upon the uEXPLORER® technology.


Redefining Cutting Edge MRI

Empowered by United Compressed Sensing (uCS® 2.0) for ultra fast acquisition, powerful 45 mT/m; 200 T/m/s gradient performance, and world class homogeneity, the uPMR 790 produces fast, high-resolution MR imaging that can be acquired in real-time with 16x acceleration.


Redefining PET/MR Research

The uSync research platform facilitates new research opportunities, including simultaneous tracking of PET and MR tracers, simultaneous cardiac PET and MR, functional neurological PET/MR, and multi-parametric radiomics.

Clinical Application

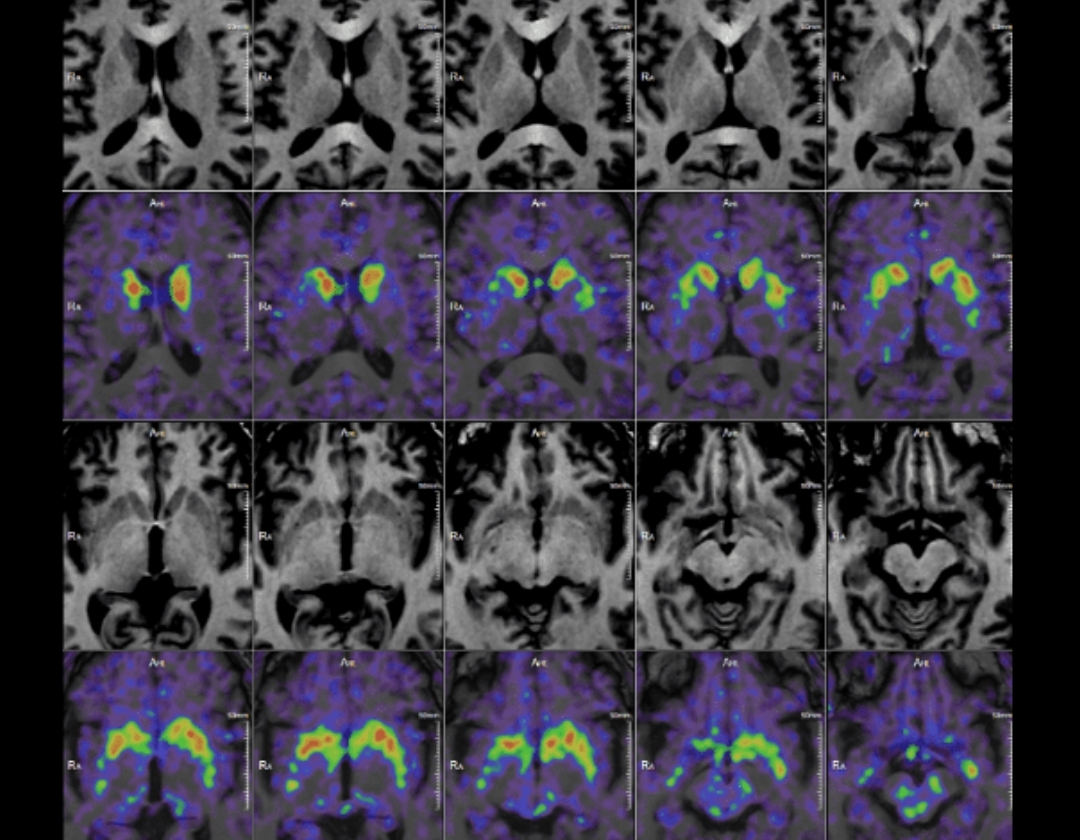

MF-DOPA used for diagnosing Parkinson's disease populations

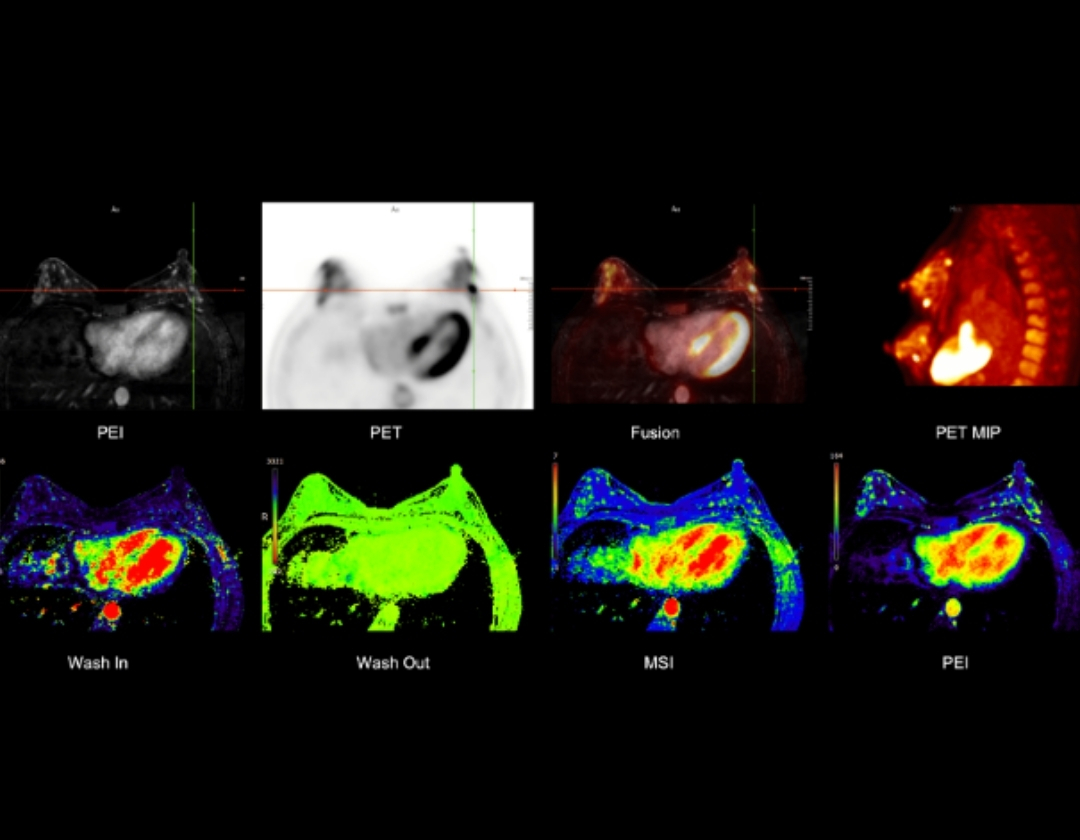

Multi-parametric PET/MR for Comprehensive Breast Evaluation

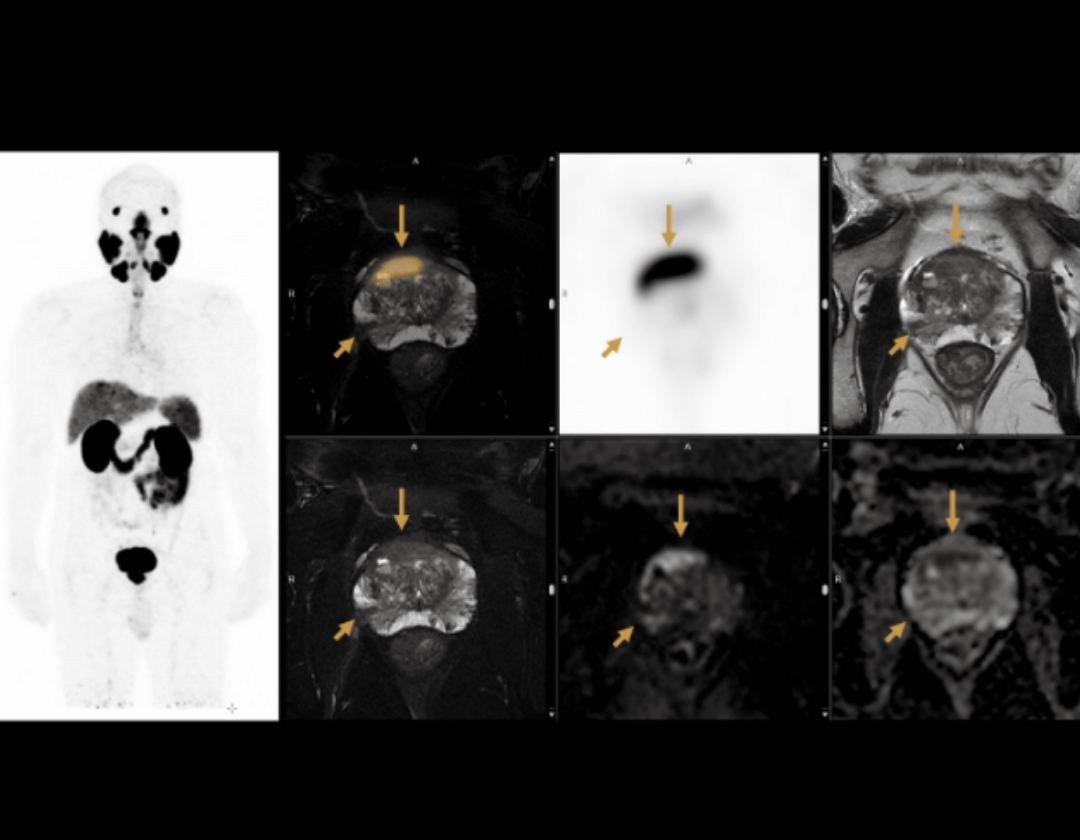

Assessment of prostate cancer

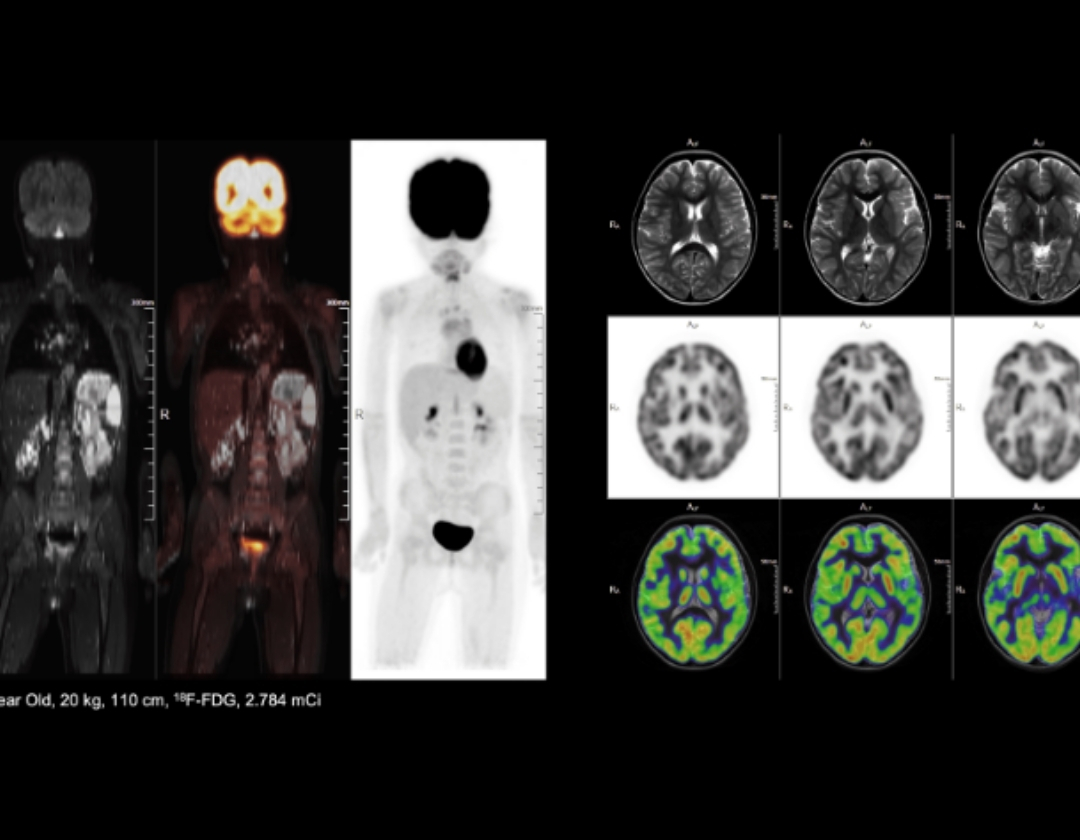

9 min high resolution whole-body PET/MR exam with low radiation dose

Features & Benefits

Best In-Class Uniform Magnet

Unmatched homogeneity (0.055 ppm @ 30 cm DSV (Typical)), means that you can reliably achieve skin-to-skin fat saturation, while the spacious 50 x 50 x 50 cm field-of-view allows for easy patient positioning.

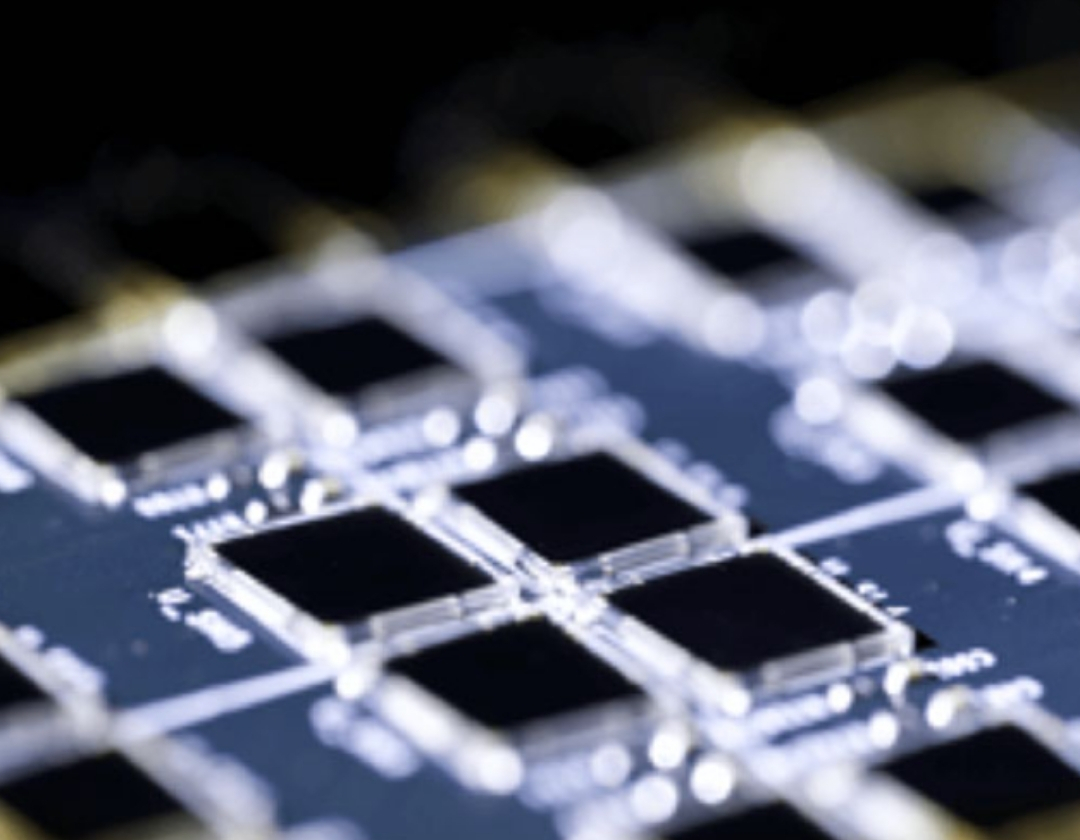

Digital LYSOPET Detectors

The ultra-large 32 cm PET FOV and 480 ps timing resolution and high sensitivity shorten whole-body exam times while capturing more signal data.

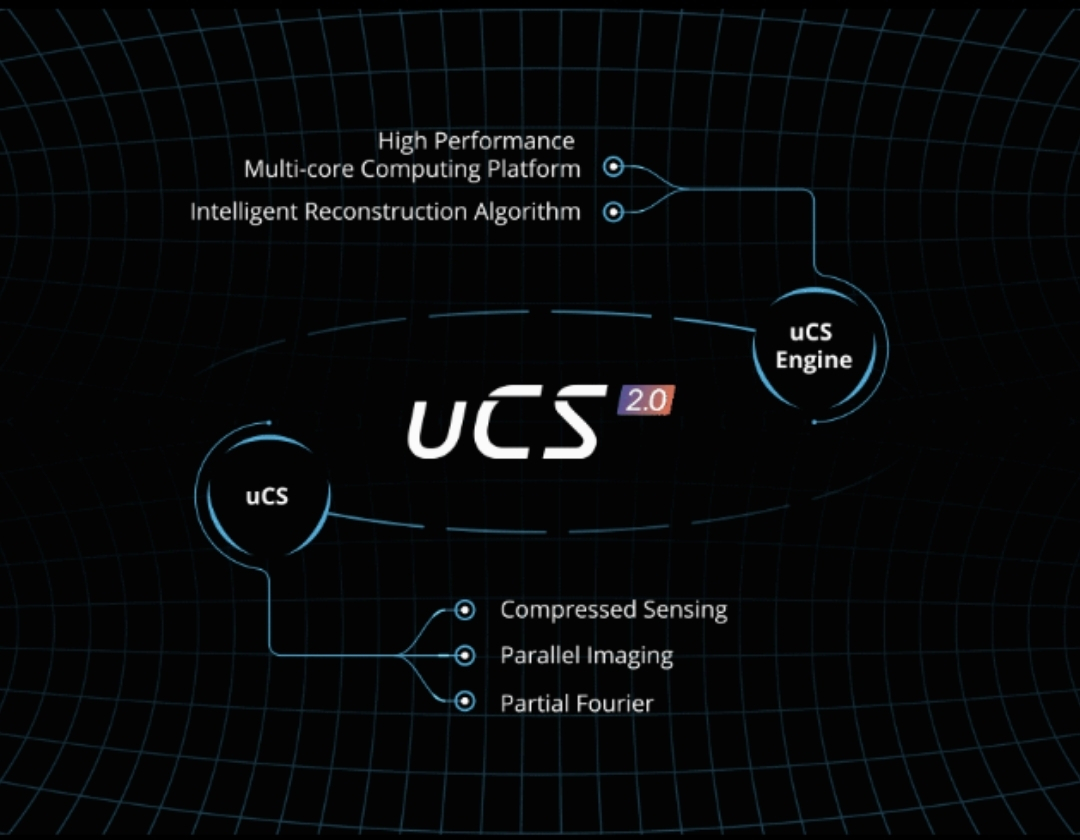

United Compressed Sensing (uCS 2.0)

uCS 2.0 is a novel approach to Compressed Sensing (CS) which incorporates prior knowledge of Partial Fourier, Parallel Imaging, and CS as weightings to mitigate artifacts and allows for exceptional acquisition speed and image quality.

2.8 mm NEMA PET Resolution

The 2.8 mm NEMA PET spatial resolution enables the precise detection of subtle lesions, providing comprehensive imaging for staging, treatment planning, and response assessment.
